EdgeScout Edge Node

Industrial Internet of Things Connectivity

The EdgeScout Edge Node is a secure data collection device that is extremely powerful, yet easy to use. Whether collecting data from a PLC, drive, embedded controller or directly from sensors, EdgeScout comes fully configured for your application. Just connect the Edge Node to the equipment and plug it into a network, then log into your myEdgeScout.com account to see business level analytics such as production totals, downtime, OEE, and more.

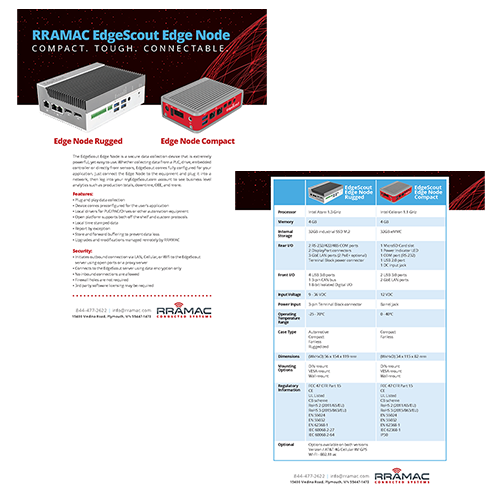

Download Spec Sheet
Edge Node Spec Sheet - IoT Solutions

FEATURES:

  • Plug and play data collection
  • Device comes preconfigured for the user’s application
  • Local drivers for PLC/PAC/Drives or other automation equipment
  • Open platform supports both off the shelf and custom protocols
  • Local time stamped data
  • Report by exception
  • Store and forward buffering to prevent data loss
  • Upgrades and modifications managed remotely by RRAMAC

SECURITY:

  • Initiates outbound connection via LAN, Cellular, or Wifi to the EdgeScout server using open ports or a proxy server
  • Connects to the EdgeScout server using data encryption only
  • No inbound connections are allowed
  • Firewall holes are not required
  • 3rd party software licensing may be required
MODEL DESCRIPTION CURRENT MSRP
ES-EN-RUGGED Lan connected RRAMAC EdgeNode designed for extended Temperature, mobile and outdoor applications $964
ES-EN-RUGGED-WIFI Same as the ES-EN-RUGGED with an 802.11 AC Wifi Module. Antenna(s) Not Included $1,005
ES-EN-RUGGED-CELL Same as the ES-EN-RUGGED with an AT&T or Verizon Cellular Module. Antenna(s) Not Included $1,332
ES-RUG-TERM A DB9 to Terminal Block for easier RS485 Wiring $14
ES-EN-COMPACT Lan connected RRAMAC EdgeNode designed for indoor or general purpose use $738
ES-EN-COMPACT-WIFI Same as the ES-EN-COMPACT with an 802.11 AC Wifi Module. Antenna(s) Not Included $752
ES-EN-COMPACT-CELL Same as the ES-EN-COMPACT with an AT&T or Verizon Cellular Module. Antenna(s) Not Included $1,085
ES-ANT-CELL-GPS A 4G cellular multiband Cellular antenna with built in GPS $158
